3,500 lb. Torsional Axle Tube


List Price: $865.95
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 877-895-1276

3,500 lb. Torsional Axle Tube

Product Details

Lippert torsional axles use specially formulated "rubber" cords to cushion the turning of the inner bar to create the best suspension on the market today. This progressive torque action provides the best shock absorption, load handling and durability features that are available for all types of trailers. The independent action of each wheel reduces shock transfer and trailer sway. The Reliable axle tube, brackets and internal bushings are designed to ensure and maintain accurate toe and camber. Includes Sure Lube system for maximum bearing protection. Hubs and bearings sold separately.

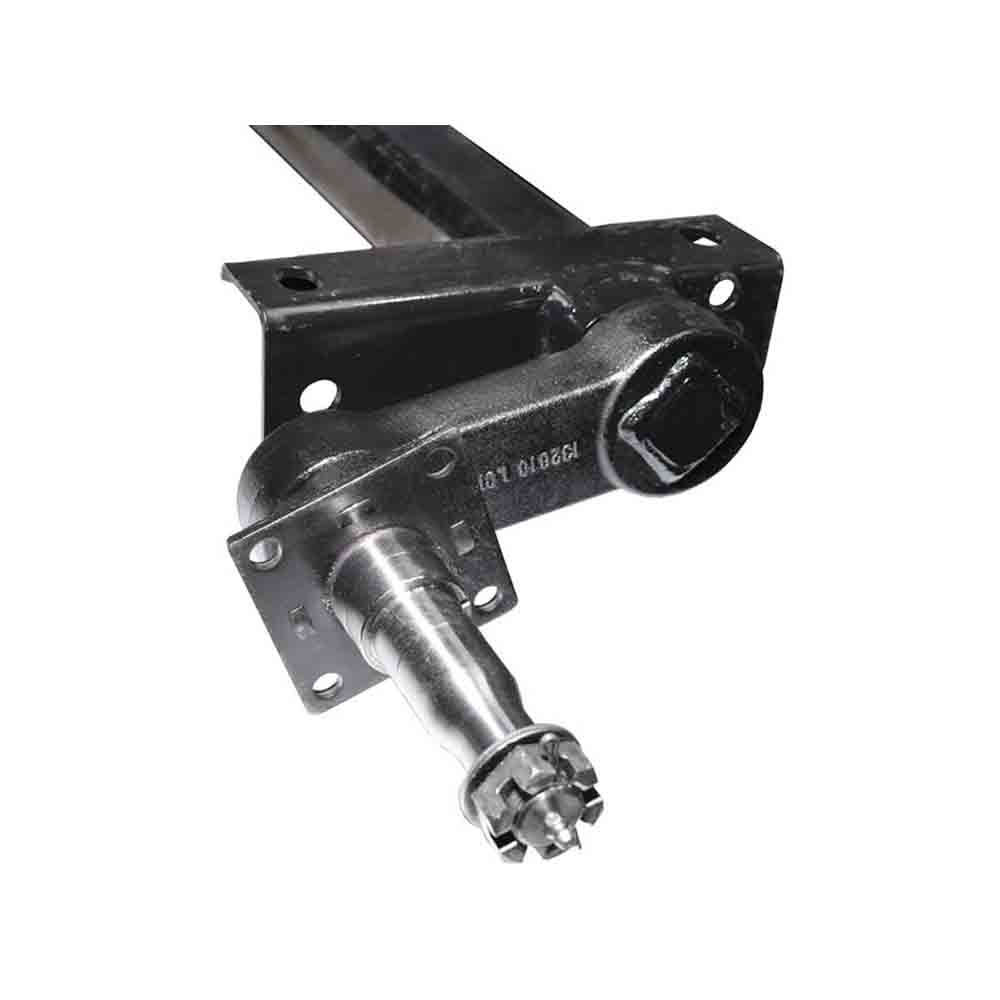

Includes torsional axle tube with spindles, castle nuts and cotter pins. Spindle arms are positioned at 30° downward starting angle. This axle includes 4-bolt flanges for mounting electric or hydraulic brakes, sold separately.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • One-piece forged spindles have a starting position of 30 degrees down
  • 1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
  • Includes Sure Lube bearing protection system - hubs and bearings sold separately
  • Progressive torque action and independent suspension
  • Axle brackets can be bolted or welded to trailer frame


Brand Lippert
Brake Mounting Flange 4-Bolt
Capacity 3,500 lbs.
Mount Width 62 inch outside brackets
Overall Width 80 inch
Width At Hub Face 76 inch
