3,500 lb. Drop Axle Assembly with Hydraulic Brakes & 5-Bolt on 4-1/2 Inch Hub/Drums - 88 Inch Hub Face

Lippert

SKU
M-D3572-H
List Price: $1110.60
$740.40
In-Stock
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 877-895-1276

3,500 lb Drop Axle Assembly w/ Hydraulic Brakes & 5-Bolt on 4-1/2" Hub/drums - 88 Inch Hub Face

Product Details

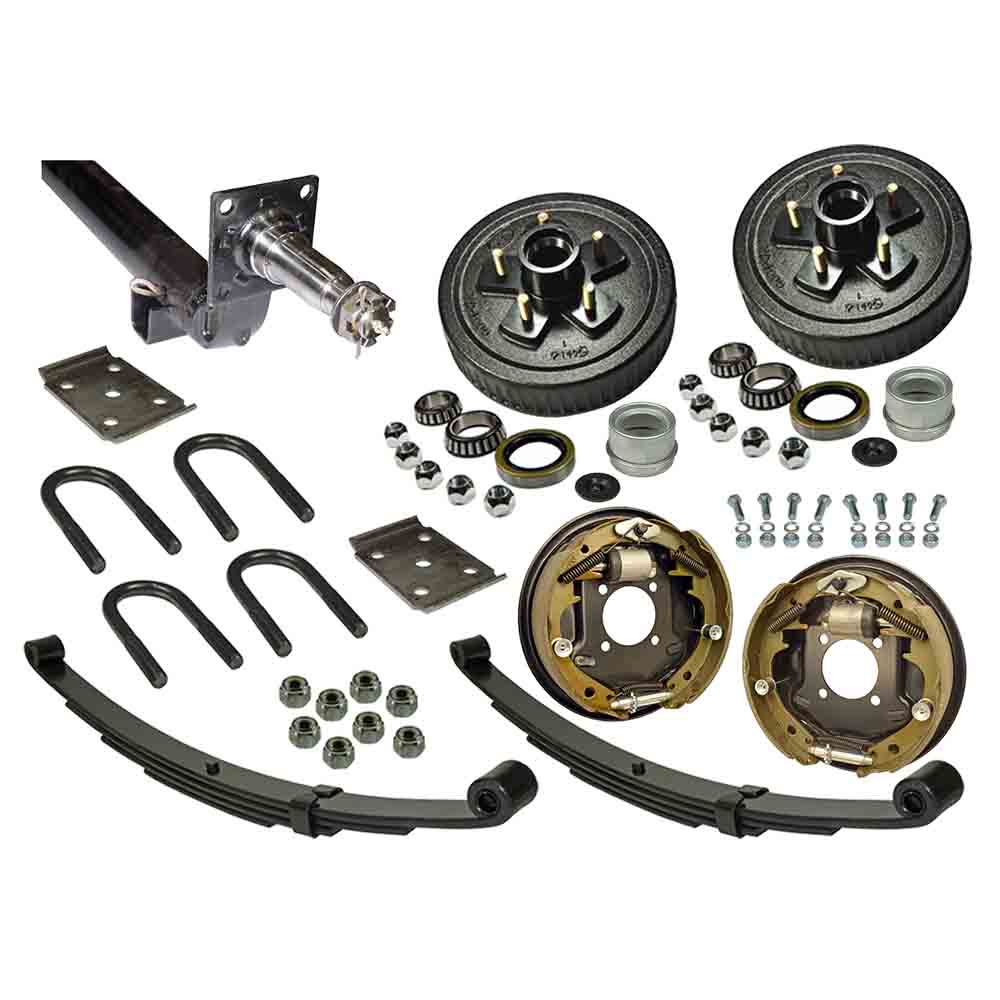

3,500 lb., 4" drop trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, hydraulic brakes, cast iron 5 on 4-1/2 inch hub/drums with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Includes (2) 5 on 4-1/2 inch studded hub/drums with bearings, seals and grease caps and 10 inch hydraulic brakes
  • Includes double eye springs with U-bolts, tie plates and lock nuts
  • 1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
  • Used on boat trailers, tent campers, utility and snowmobile trailers

Specifications

Specifications
Brand Lippert
Capacity 3,500 lbs.
Mount Width 72 inch
Overall Width 90-1/2 inch
Spring Dimensions 27 inch (eye to eye) x 1 3/4 inch
Spring Seats Attached
Width At Hub Face 88 inch
