3,500 lb. Straight Axle Assembly with Brake Flanges and 5-Bolt on 4-1/2 Inch Hubs - 62 Inch Hub Face

Lippert

SKU
M-3548-WO
List Price: $638.95
$410.52
In-Stock
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 877-895-1276

3,500 lb. Straight Axle Assembly with Brake Flanges and 5-Bolt on 4-1/2" Hubs - 62 Inch Hub Face

Product Details

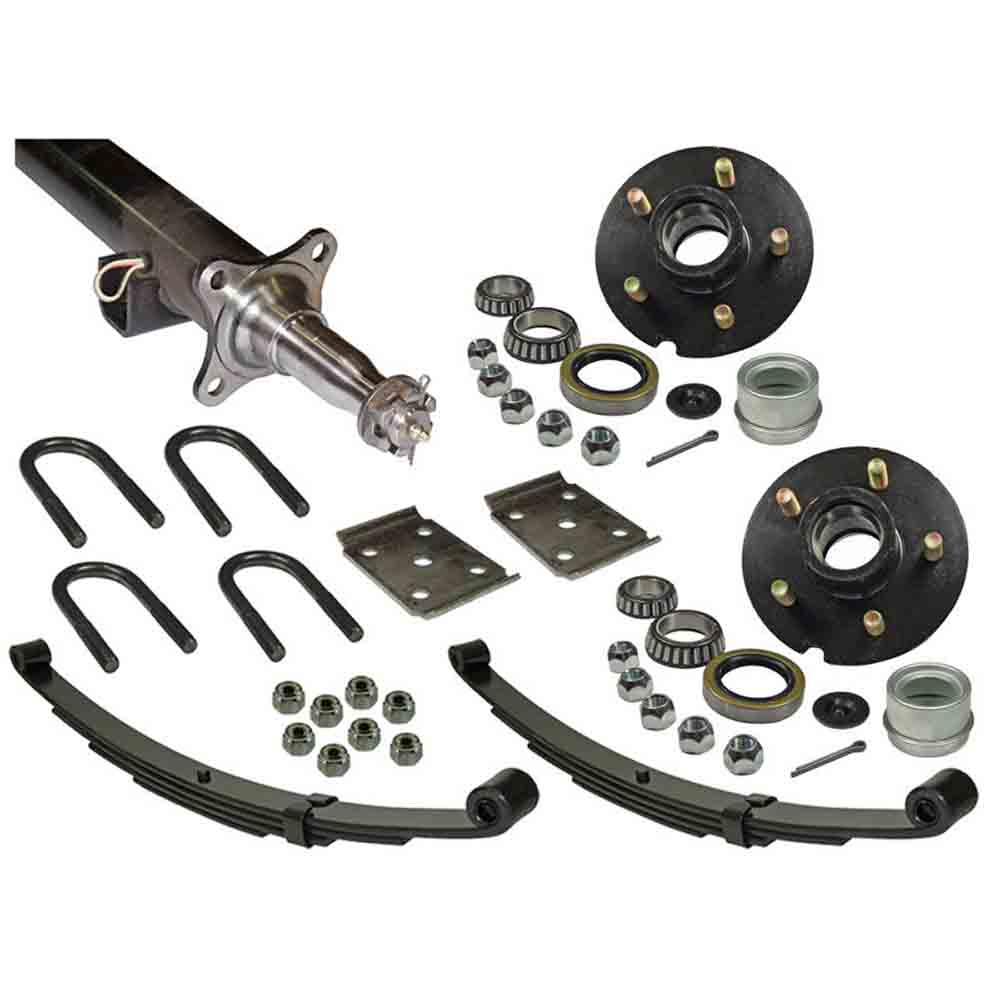

3,500 lb. straight trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, flanges for mounting drum or disc brakes (not included), cast iron 5 on 4-1/2 inch hubs with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Includes (2) 5 on 4-1/2 inch studded hubs with bearings, seals and grease caps
  • Includes double eye springs with U-bolts, tie plates and lock nuts
  • 1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
  • Axle includes flanges for mounting drum or disc brakes (sold separately)
  • Used on boat trailers, tent campers, utility and snowmobile trailers

Specifications

Specifications
Brand Lippert
Capacity 3,500 lbs.
Mount Width 48 inch
Overall Width 66-1/2 inch
Spring Dimensions 27 inch (eye to eye) x 1 3/4 inch
Spring Seats Attached
Width At Hub Face 62 inch
