6,000 lb. Drop Axle Assembly with Electric Brakes & 8-Bolt on 6-1/2 Inch Hub/Drums - 89-1/2 Inch Hub Face


List Price: $1516.95
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

6,000 lb Drop Axle Assembly w/ Electric Brakes & 8-Bolt on 6-1/2" Hub/drums - 89-1/2 Inch Hub Face

Product Details

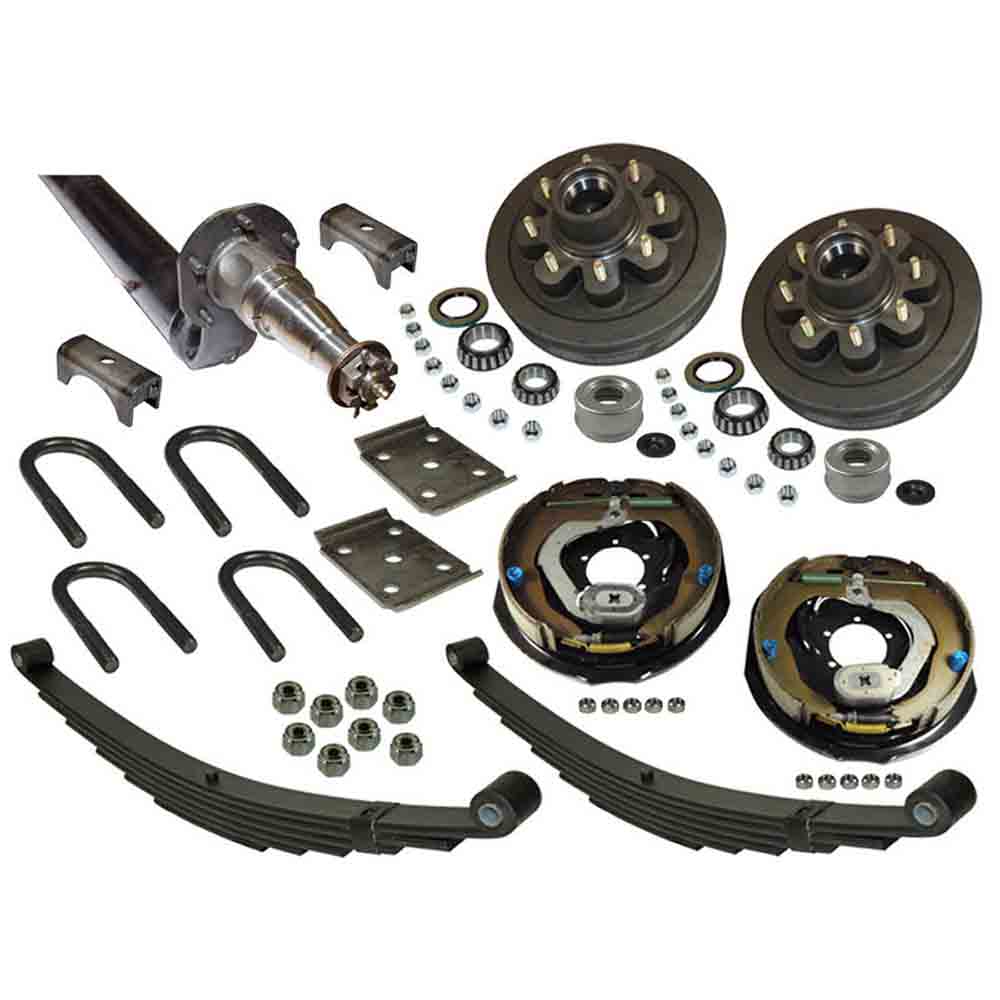

6,000 lb., 4" drop trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, electric brakes, cast iron 8 stud on 6-1/2 inch bolt circle hub/drums with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 3" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Includes (2) 8 on 6-1/2 inch studded hub/drums with bearings, seals, grease caps and 12 inch electric brakes
  • Spring seats are shipped loose and must be welded to the axle to complete the installation
  • Includes double eye springs with U-bolts, tie plates and lock nuts
  • 1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins


Brand Lippert
Capacity 6,000 lbs.
Mount Width 71-1/2 to 73 inch
Overall Width 92 inch
Spring Dimensions 27 inch (eye to eye) x 1 3/4 inch
Spring Seats Loose
Width At Hub Face 89-1/2 inch
