5,200 lb. Straight Axle Assembly with Hydraulic Brakes & 8-Bolt on 6-1/2 Inch Hub/Drums - 86 Inch Hub Face


List Price: $1857.95
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

5,200 lb Straight Axle Assembly w/ Hydraulic Brakes & 8-Bolt on 6-1/2" Hub/drums - 86 Inch Hub Face

Product Details

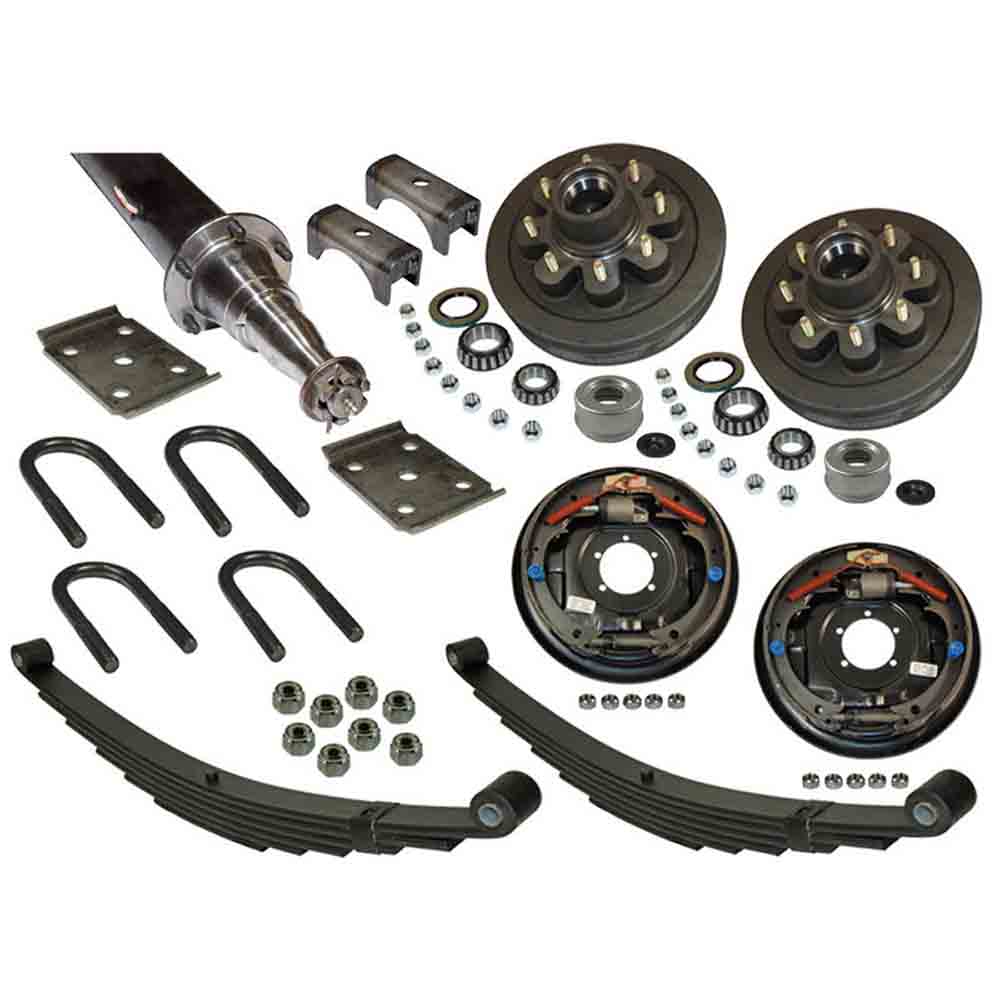

5,200 lb. straight trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, hydraulic brakes, cast iron 8 stud on 6-1/2 inch bolt circle hub/drums with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 3" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Includes (2) 8 on 6-1/2 inch studded hub/drums with bearings, seals, grease caps and 12 inch hydraulic brakes
  • Spring seats are shipped loose and must be welded to the axle to complete the installation
  • Includes double eye springs with U-bolts, tie plates and lock nuts
  • 1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins


Brand Lippert
Capacity 5,200 lbs.
Mount Width 68 to 72 inch
Overall Width 92 inch
Spring Dimensions 27 inch (eye to eye) x 1 3/4 inch
Spring Seats Loose
Width At Hub Face 86 inch
