2,200 lb. Straight Axle Tube - 69 Inch Hub Face


List Price: $224.95
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

2,200 lb. Straight Axle Tube - 69 Inch Hub Face

Product Details

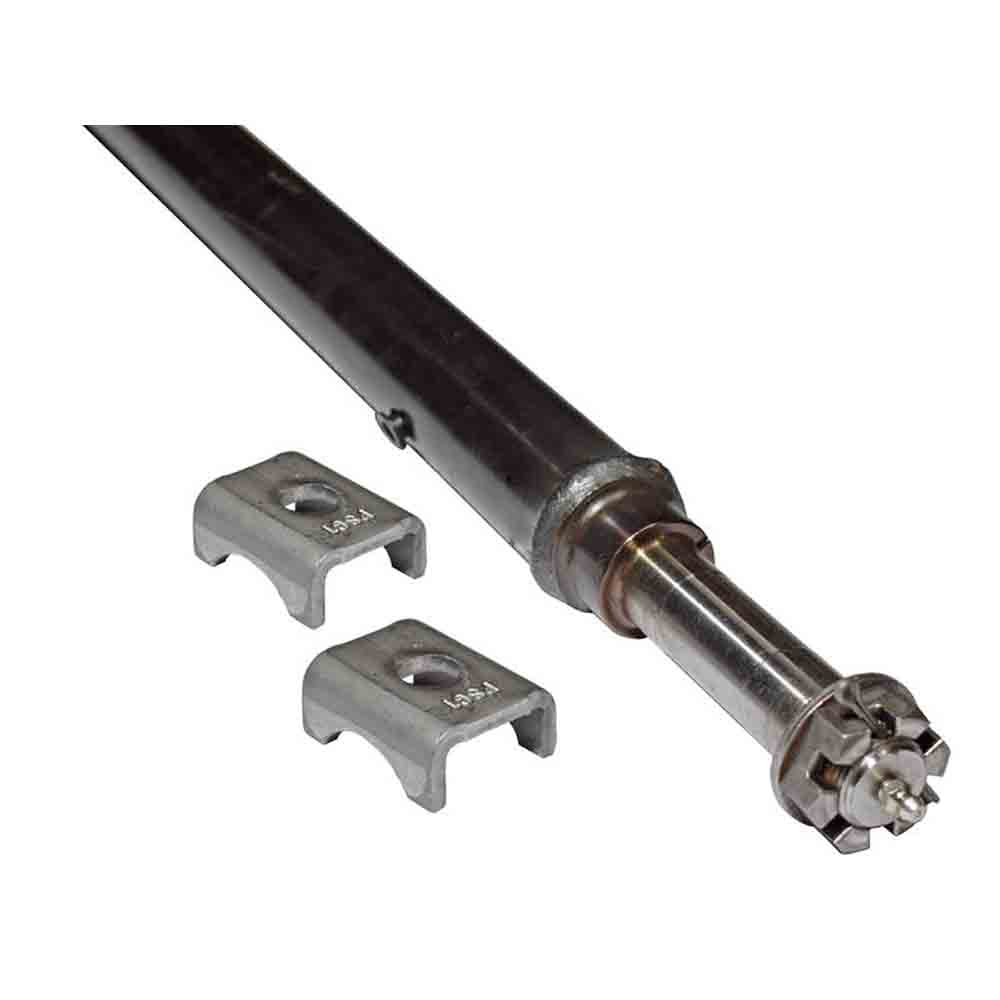

2,200 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 1-3/4" diameter x 3/16" wall round tubing. This axle DOES NOT include flanges for mounting electric or hydraulic brakes. May be used with 4 or 5-lug hubs, sold separately. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Spring seats are shipped loose and must be welded to the axle to complete the installation
  • 1-1/16 inch straight spindles with castle nuts and cotter pins
  • Used on boat trailers, tent campers, utility and snowmobile trailers


Brand Lippert
Capacity 2,200 lbs.
Mount Width 53 to 59 inch
Overall Width 73-1/2 inch
Seal Surface Diameter 1.50 inch
Spring Seats Loose
Width At Hub Face 69 inch
