6-Bolt on 5-1/2 Inch Bolt Circle - 12 Inch Hub/Drum With Electric Brake Assembly - Pair
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

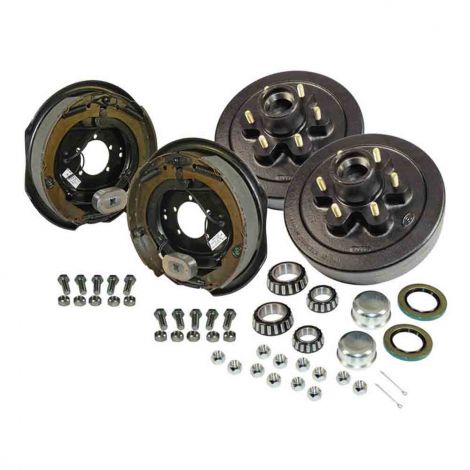

This hub/drum assembly contains everything you need to replace your hub/drums & brakes on your trailer. This assembly works for a spindle that has a 1-3/4" inner bearing surface to a 1-1/4" bearing surface.
The 12" x 2-1/2" hub/drum has a 6 bolt on 5-1/2" bolt circle with a 3,000 lbs capacity PER side. Fits 6,000 lb axles.
This also includes a 5-bolt electric backing plates. Rated at 3,000 lbs each / 6,000 lbs per pair. (10)- 3/8" x 1-1/2" bolts, nuts and lock washers are included.
Also included are the bearings & seals. Seals included is a double lip (2) SL-213 with a 3.375" outside diameter and a 2.125" inside diameter, .313" thickness. (2) L-25580 inner bearings (1.75" I.D), (2) L-15123 outer bearings (1.25" I.D), (2) cotter pins, (2) dust caps and (12) 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.
- Please note: Castle nut or grease are not included in this assembly.
|Brake Diameter||12 inch|
|Capacity||3,000 lbs. per side|
