Brake Backing Plate-Hub Kit - Elec - 10 Inch

Rigid Hitch

SKU
BPH1003ER
List Price: $236.85
$173.69
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-895-1276

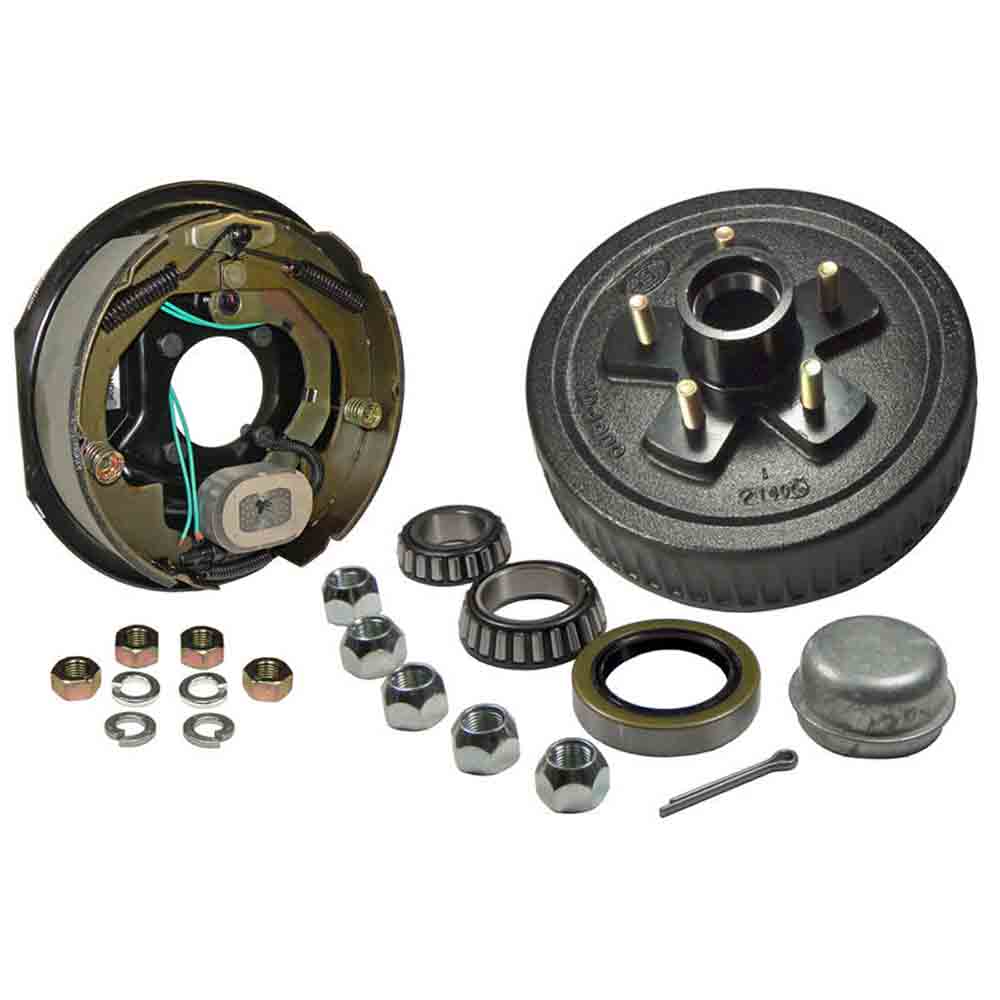

5-Bolt on 5 Inch Bolt Circle - 10 Inch Hub/Drum With Electric Brake Assembly - Passenger Side

Product Details

This hub/drum assembly contains everything you need to replace your hub/drum & brake on the passenger side of your trailer. This assembly works for a spindle that has a 1-3/8" inner bearing surface to a 1-1/16" bearing surface.

The 10" x 2-1/2" hub/drum has a 5 bolt on 5" bolt circle with a 1,750 lbs capacity PER side. Fits 3,500 lb axles.

This also includes a 4-bolt electric backing plate that mounts directly onto your axle's drivers side flange. The 4-bolt hole spacing is 2-7/8" apart with a 3" center hole diameter. Rated at 1,750 lbs each / 3,500 lbs per pair. (4)- 7/16"-14 x 1-1/2" bolts, nuts and lock washers are included.

Also included are the bearings & seal. Seal included is a double lip SL-172 with a 2.561" outside diameter and a 1.719 inside diameter, .50" thickness. (1) L-68149 inner bearing (1.378" I.D), (1) L-44649 outer bearing (1.0625" I.D), (1) cotter pin, (1) dust cap and (5) 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.

Please note: Castle nut or grease are not included in this assembly.

Specifications

Specifications
Brand Rigid Hitch
Brake Diameter 10 inch
Capacity 1,750 lbs. per side
Mounting Side Right
