Brake Backing Plate-Hub Kit - Pair- 10 Inch

Rigid Hitch

List Price: $429.95
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-895-1276

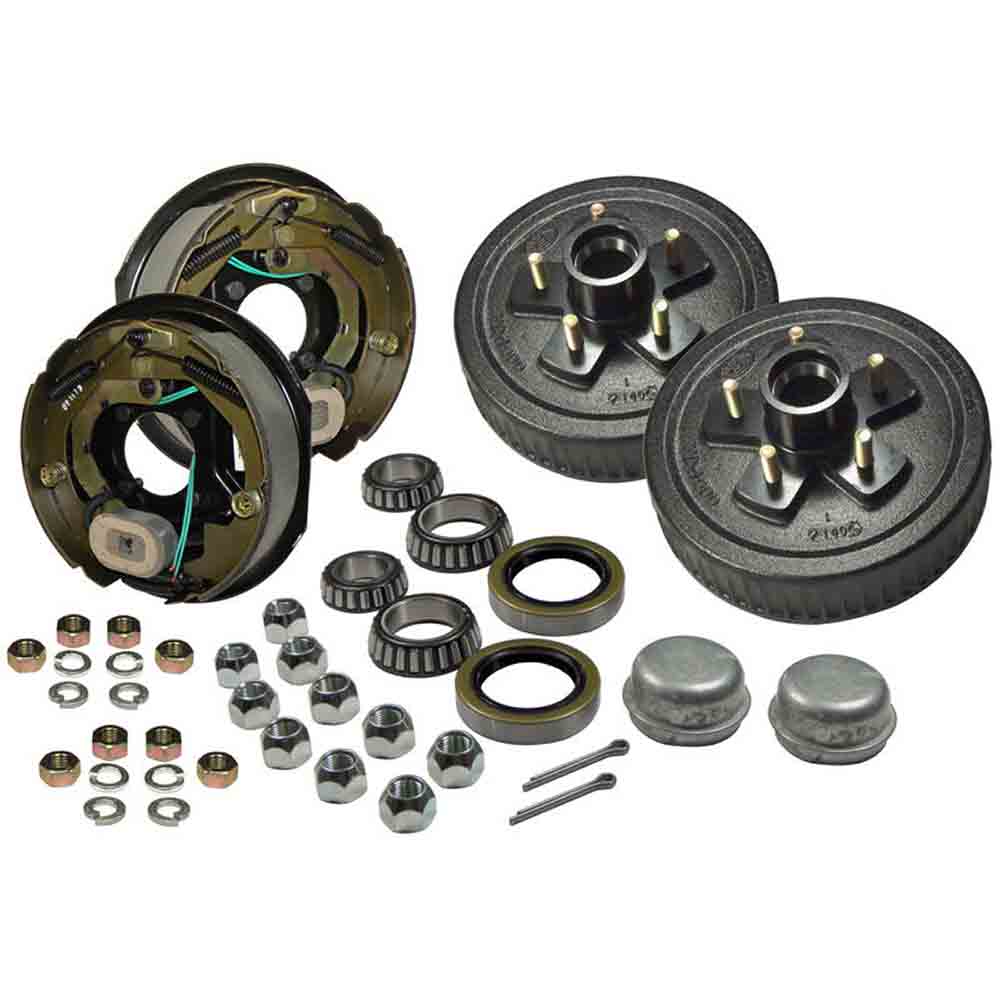

5-Bolt on 5 Inch Bolt Circle - 10 Inch Hub/Drum With Electric Brake Assembly - Pair

Product Details

This hub/drum assembly contains everything you need to replace your hub/drums & brakes on your trailer. This assembly works for a spindle that has a 1-3/8" inner bearing surface to a 1-1/16" bearing surface.

The 10" x 2-1/2" hub/drum has a 5 bolt on 5" bolt circle with a 1,750 lbs capacity PER side. Fits 3,500 lb axles.

This also includes a 4-bolt electric backing plate that mounts directly onto your axle's flange. The 4-bolt hole spacing is 2-7/8" apart with a 3" center hole diameter. Rated at 1,750 lbs each / 3,500 lbs per pair. (8)- 7/16"-14 x 1-1/2" bolts, nuts and lock washers are included.

Also included are the bearings & seals. (2) Seal included is a double lip SL-172 with a 2.561" outside diameter and a 1.719 inside diameter, .50" thickness. (2) L-68149 inner bearings (1.378" I.D), (2) L-44649 outer bearings (1.0625" I.D), (2) cotter pins, (2) dust caps and 10-Pack 1/2"-20 lug nuts. The races are preinstalled in the hub/drum for your convenience.

Please note: Castle nuts or grease are not included in this assembly.


Brand Rigid Hitch
Brake Diameter 10 inch
Capacity 3,500 lbs.
Mounting Side Both
