2,000 lb. Torsional Axle Assembly with 4-Bolt on 4 Inch Hubs
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Lippert torsional axles use specially formulated "rubber" cords to cushion the turning of the inner bar to create the best suspension on the market today. This progressive torque action provides the best shock absorption, load handling and durability features that are available for all types of trailers. The independent action of each wheel reduces shock transfer and trailer sway. The Reliable axle tube, brackets and internal bushings are designed to ensure and maintain accurate toe and camber. Includes Sure Lube system for maximum bearing protection.

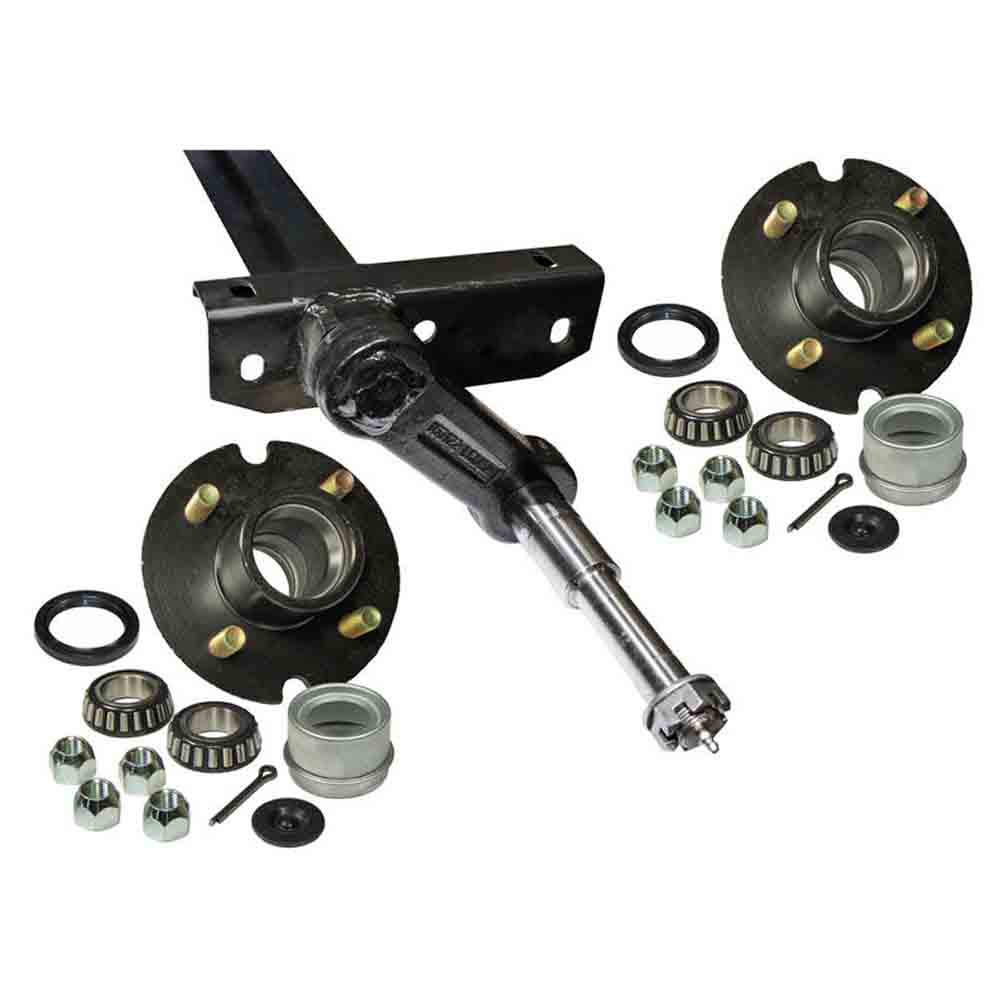

Axle assembly includes torsional axle tube with spindles, castle nuts and cotter pins, cast iron 4 on 4" hubs with bearings, seals, grease caps and lug nuts. Spindle arms are positioned at 45° downward starting angle. This axle DOES NOT include flanges for mounting electric or hydraulic brakes.
- Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
- Includes (2) 4 on 4 inch studded hubs with bearings, seals and grease caps
- One-piece forged spindles have a starting position of 45 degrees down
- 1-1/16 inch straight spindles with castle nuts and cotter pins
- Includes Sure Lube bearing protection system
- Progressive torque action and independent suspension
- Axle brackets can be bolted or welded to trailer frame
|Mount Width||74 inch outside brackets|
|Overall Width||94 inch|
|Width At Hub Face||90 inch|
