Cam-type lock with narrow keepers. All steel 14 inch handle and hasp allows the builder to weld handle lug to pipe (not included). End brackets are 5-1/8 inch x 1-5/8 inch with (2) 9/16 inch mounting holes spaced 4 inch apart. Middle brackets are 4 inch x 1-1/2 inch with 9/16 inch holes 2-3/16 inch apart. Kit requires 3/4 inch diameter pipe and welding of handle to complete.

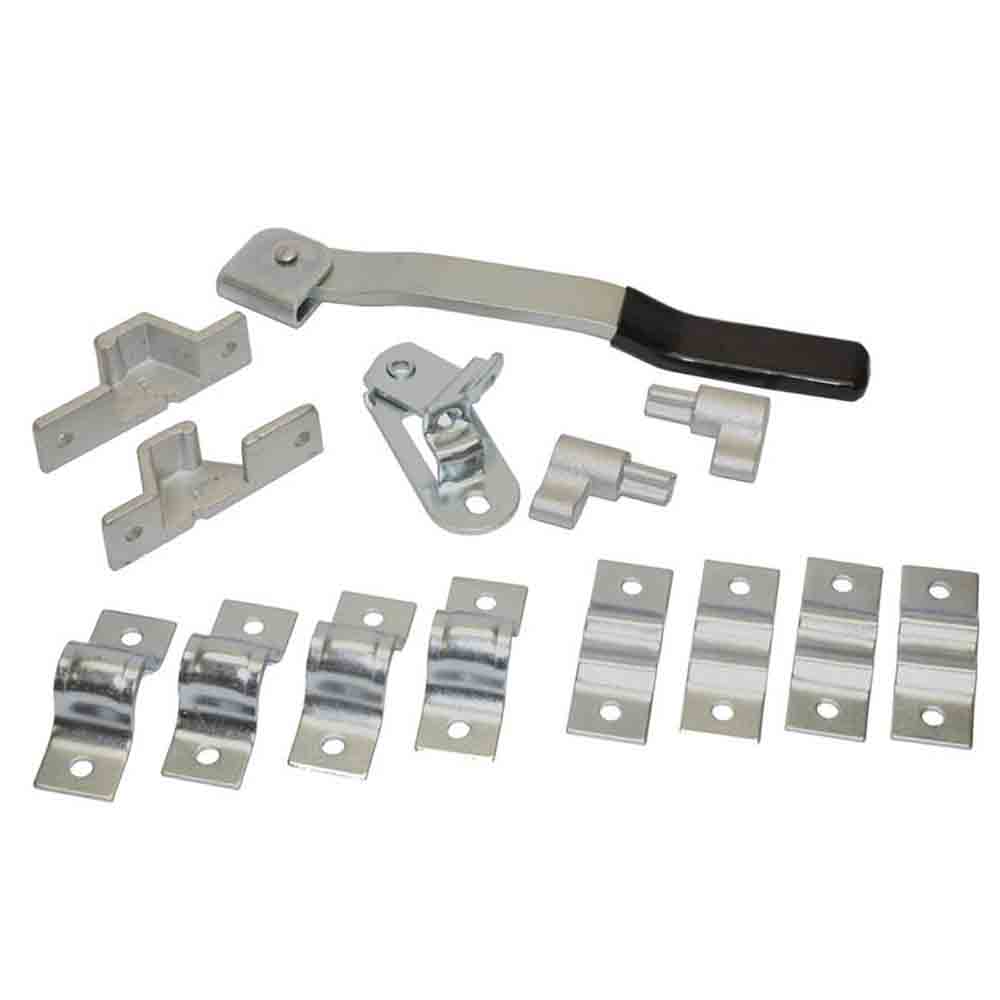

Kit includes keepers, lugs, (4) retainers, handle with bracket and hasp
Installation requires welding handle to pipe
3/4 inch pipe not included
Mounting hardware not included
Assembly can be installed on flush or up to 0.75 inch offset doors
