Single - 4-Bolt on 4 Inch Hub Assembly with 1-1/16 Inch Straight Spindle & Bearings
List Price: $86.95
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

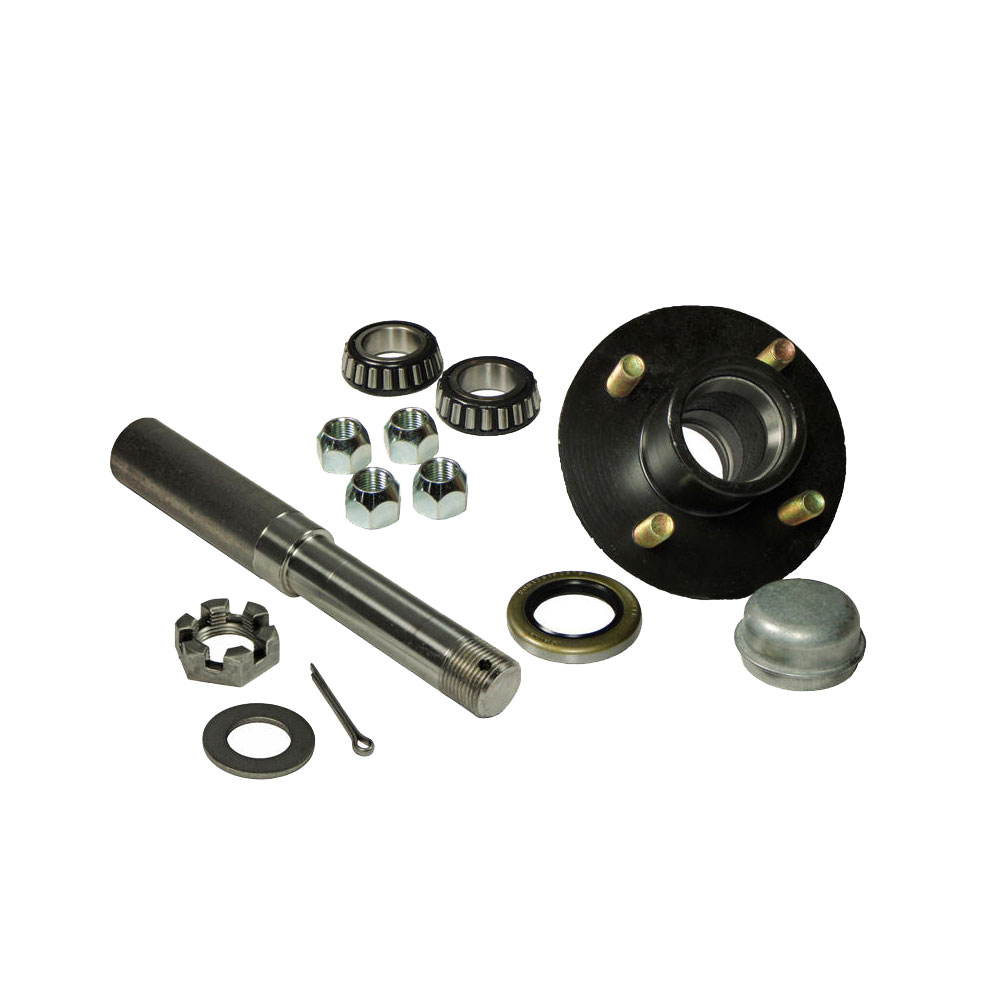

Single - 4-Bolt On 4 Inch Hub Assembly - Includes (1) 1-1/16 Inch Straight Spindle & Bearings
Easily build your own axle with this 2,200 lb. rated assembly. (Rated as a pair) This kit includes (1) - 4-bolt on 4 inch bolt center hub for 2,000 lb. axles, (1) - 1-1/16 inch straight spindle, (1) castle nut, (1) cotter pin, (4) 1/2-20 lug nuts, (1) 1.987 O.D. x 1.249 I.D. grease seal, (2) L-44649 1-1/16 inch I.D. inner/outer bearings and (1) 1.986 O.D. x 1.16 inch depth, dust cap.
- Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.
- 1-1/16 inch straight spindle includes castle nut and cotter pin
- Bearings included - (2) L-44649 1-1/16 inch inside dimension
- Hub has pre-installed pressed in races
- Hub has a 4-bolt pattern on 4 inch bolt circle. Pilot diameter 2-1/2 inch, flange diameter 5.56 inch and measures 4-1/4 inch tall.
- Spindle features a ROUND 1-1/4 inch stock diameter with a bearing surface of 1-1/16 inch
- See picture 2 for spindle dimensions
|Bolt Pattern||4 x 4|
