6,000 lb. Straight Axle Tube - 74 Inch Hub Face


List Price: $415.95
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

6,000 lb. Straight Axle Tube - 74 Inch Hub Face

Product Details

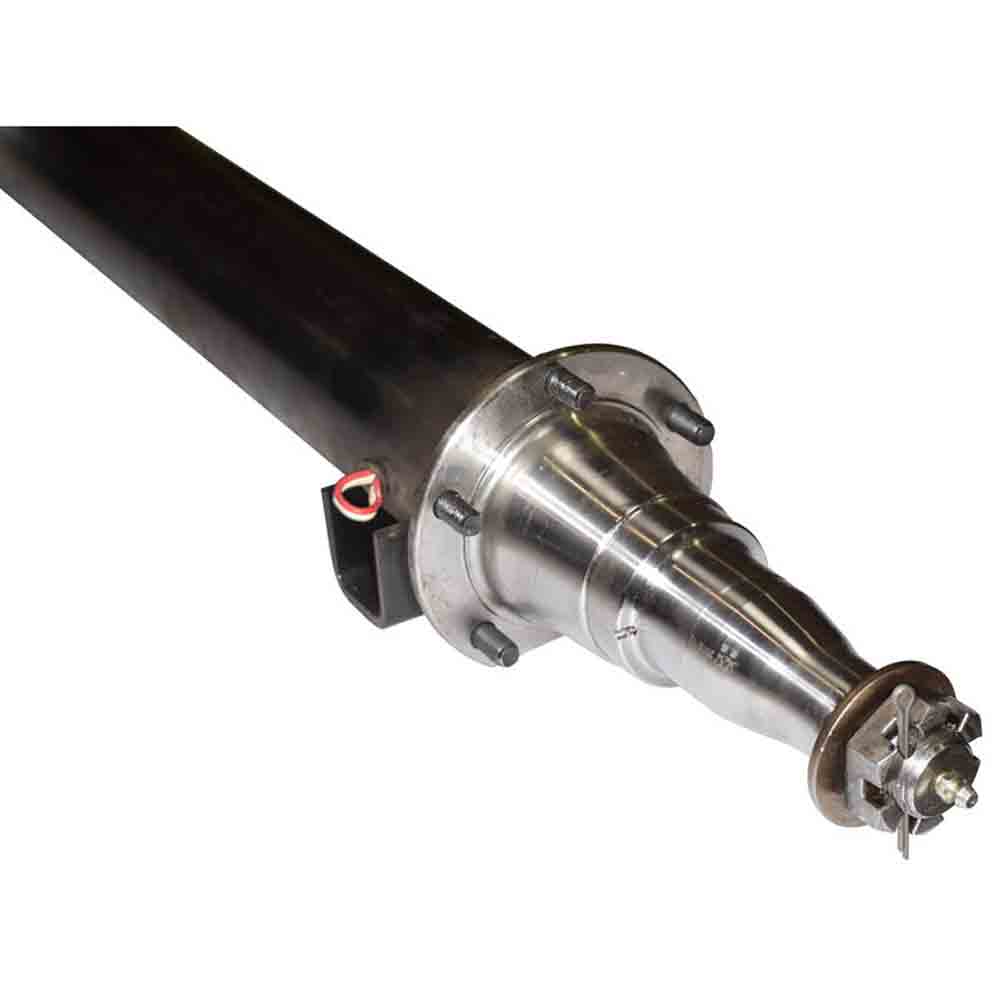

6,000 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 3" diameter x 3/16" wall round tubing with 5-bolt flanges for attaching electric (6,000 lb.) or hydraulic (5,200 lb.) brakes, sold separately. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Springs are sold separately. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • 1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins
  • Axle includes flanges for mounting drum brakes (sold separately)
  • Rated for up to 6,000 lbs. when equipped with electric brakes, 5,200 lbs. with hydraulic brakes (sold separately)


Brand Lippert
Brake Mounting Flange 5-Bolt
Capacity 6,000 lbs.
Mount Width 60 inch
Overall Width 80 inch
Spring Seats Attached
Width At Hub Face 74 inch
