5,200 lb. Straight Axle Assembly with Hydraulic Brakes & 8-Bolt on 6-1/2 Inch Hub/Drums - 86 Inch Hub Face
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

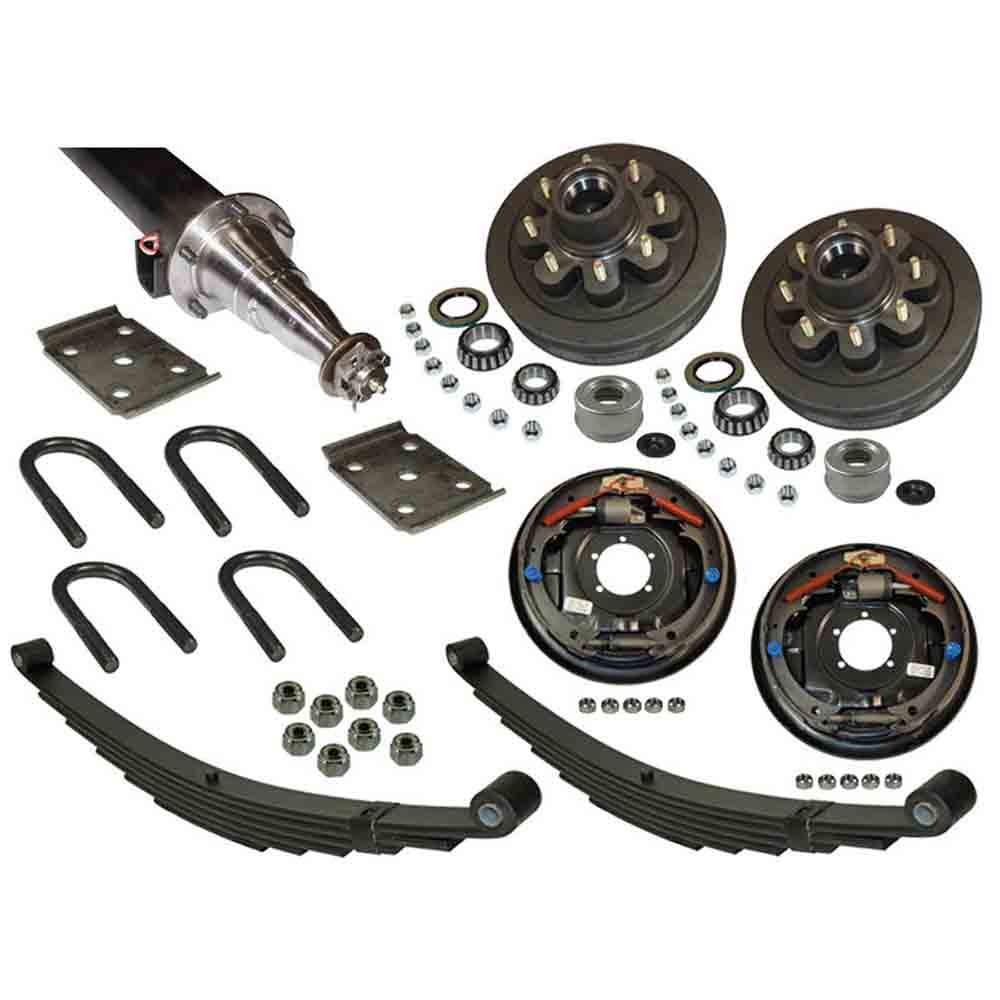

5,200 lb. straight trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, hydraulic brakes, cast iron 8 stud on 6-1/2 inch bolt circle hub/drums with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 3" diameter x 3/16" wall round tubing. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.
- Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
- Includes (2) 8 on 6-1/2 inch studded hub/drums with bearings, seals, grease caps and 12 inch hydraulic brakes
- Includes double eye springs with U-bolts, tie plates and lock nuts
- 1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins
|Mount Width||72 inch|
|Overall Width||92 inch|
|Spring Dimensions||27 inch (eye to eye) x 1 3/4 inch|
|Width At Hub Face||86 inch|
