5,200 lb. Straight Axle Assembly with Hydraulic Brakes & 8-Bolt on 6-1/2 Inch Hub/Drums - 74 Inch Hub Face


List Price: $1865.95
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

5,200 lb Straight Axle Assembly w/ Hydraulic Brakes & 8-Bolt on 6-1/2" Hub/drums - 74 Inch Hub Face

Product Details

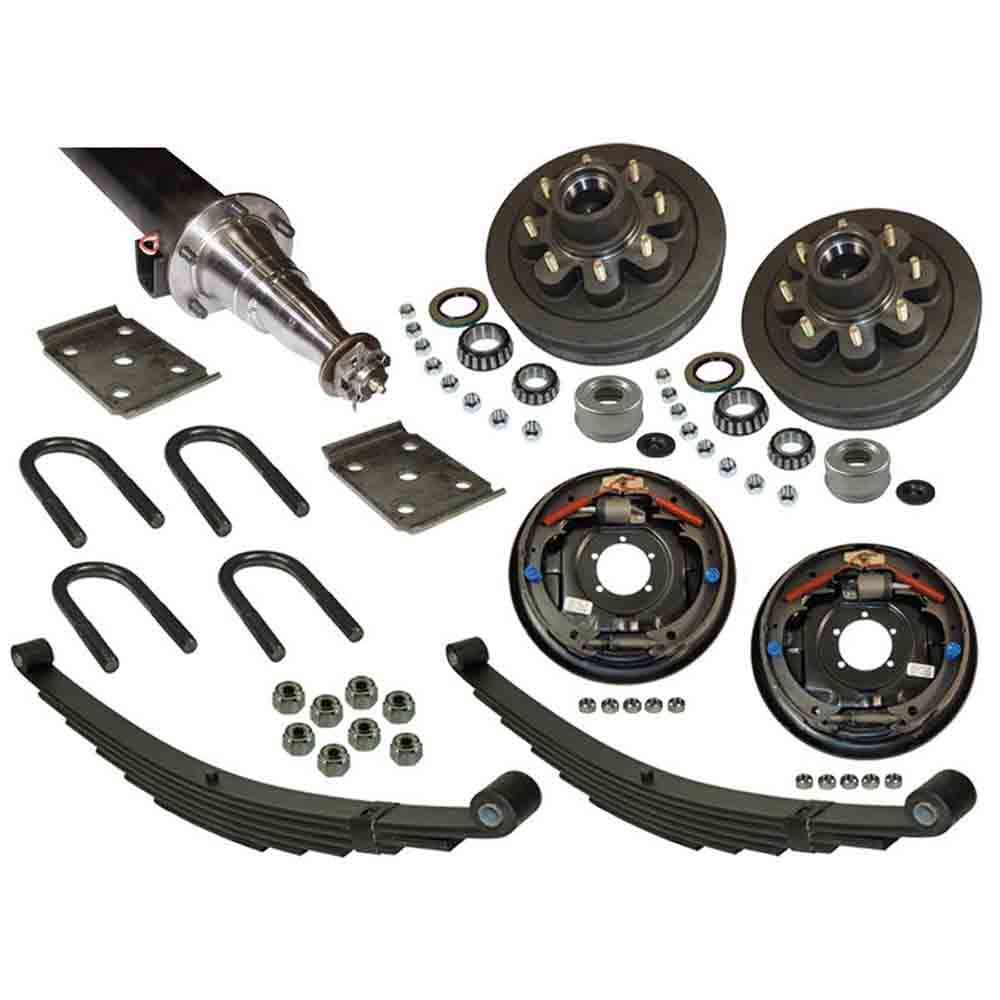

5,200 lb. straight trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, hydraulic brakes, cast iron 8 stud on 6-1/2 inch bolt circle hub/drums with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 3" diameter x 3/16" wall round tubing. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Includes (2) 8 on 6-1/2 inch studded hub/drums with bearings, seals, grease caps and 12 inch hydraulic brakes
  • Includes double eye springs with U-bolts, tie plates and lock nuts
  • 1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins


Brand Lippert
Capacity 5,200 lbs.
Mount Width 60 inch
Overall Width 80 inch
Spring Dimensions 27 inch (eye to eye) x 1 3/4 inch
Spring Seats Attached
Width At Hub Face 74 inch
