3,500 lb. Straight Axle Tube with 74 Inch Hub Face

Lippert

SKU
M-360-S
List Price: $271.89
$183.00
In-Stock
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 877-895-1276

3,500 lb. Straight Axle Tube - 74 Inch Hub Face

Product Details

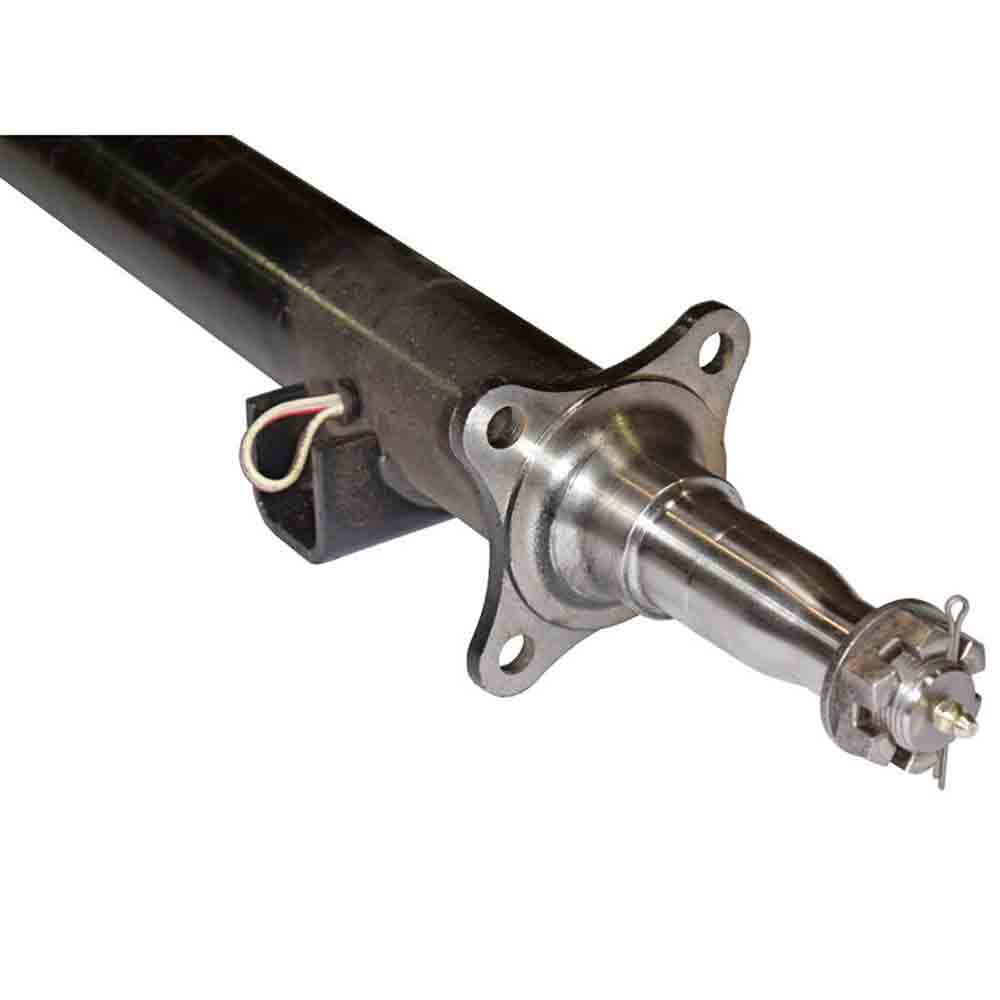

3,500 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 2-3/8" diameter x 3/16" wall round tubing and includes 4-bolt flanges for mounting electric or hydraulic brakes (sold separately). Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Springs are sold separately. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • 1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
  • Used on boat trailers, tent campers, utility and snowmobile trailers

Specifications

Specifications
Brand Lippert
Brake Mounting Flange 4-Bolt
Capacity 3,500 lbs.
Mount Width 60 inch
Overall Width 78-1/2 inch
Spring Seats Attached
Width At Hub Face 74 inch
