6,000 lb. Straight Axle Tube - 86 Inch Hub Face


List Price: $406.95
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

6,000 lb. Straight Axle Tube - 86 Inch Hub Face

Product Details

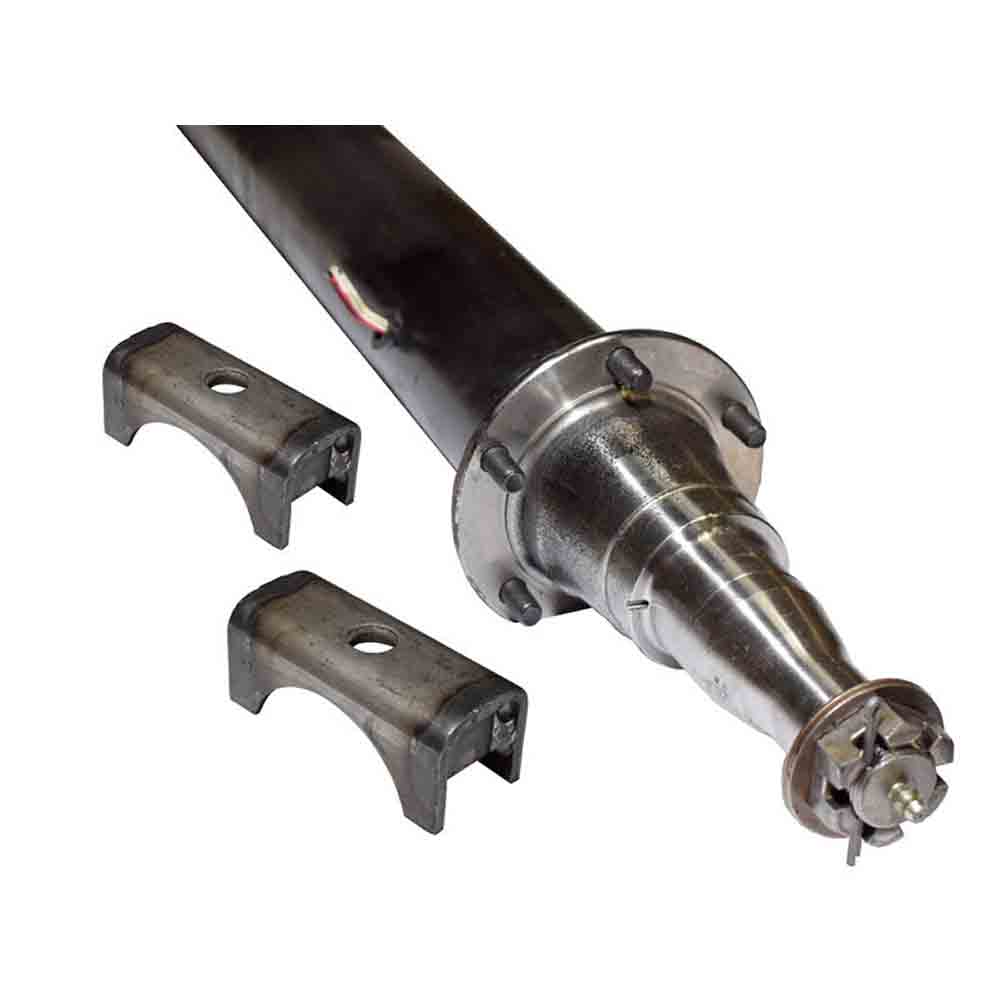

6,000 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 3" diameter x 3/16" wall round tubing with 5-bolt flanges for attaching electric (6,000 lb.) or hydraulic (5,200 lb.) brakes, sold separately. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Spring seats are shipped loose and must be welded to the axle to complete the installation
  • 1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins


Brand Lippert
Brake Mounting Flange 5-Bolt
Capacity 6,000 lbs.
Mount Width 68 to 72 inch
Overall Width 92 inch
Spring Seats Loose
Width At Hub Face 86 inch
