6,000 lb. Straight Axle Assembly with Brake Flanges & 8-Bolt on 6-1/2 Inch Hubs - 74 Inch Hub Face

Lippert

SKU
LM-6060-WO
List Price: $934.93
$623.29
Out-Of-Stock
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 877-895-1276

6,000 lb Straight Axle Assembly w/ Brake Flanges & 8-Bolt on 6-1/2" Hubs - 74 Inch Hub Face

Product Details

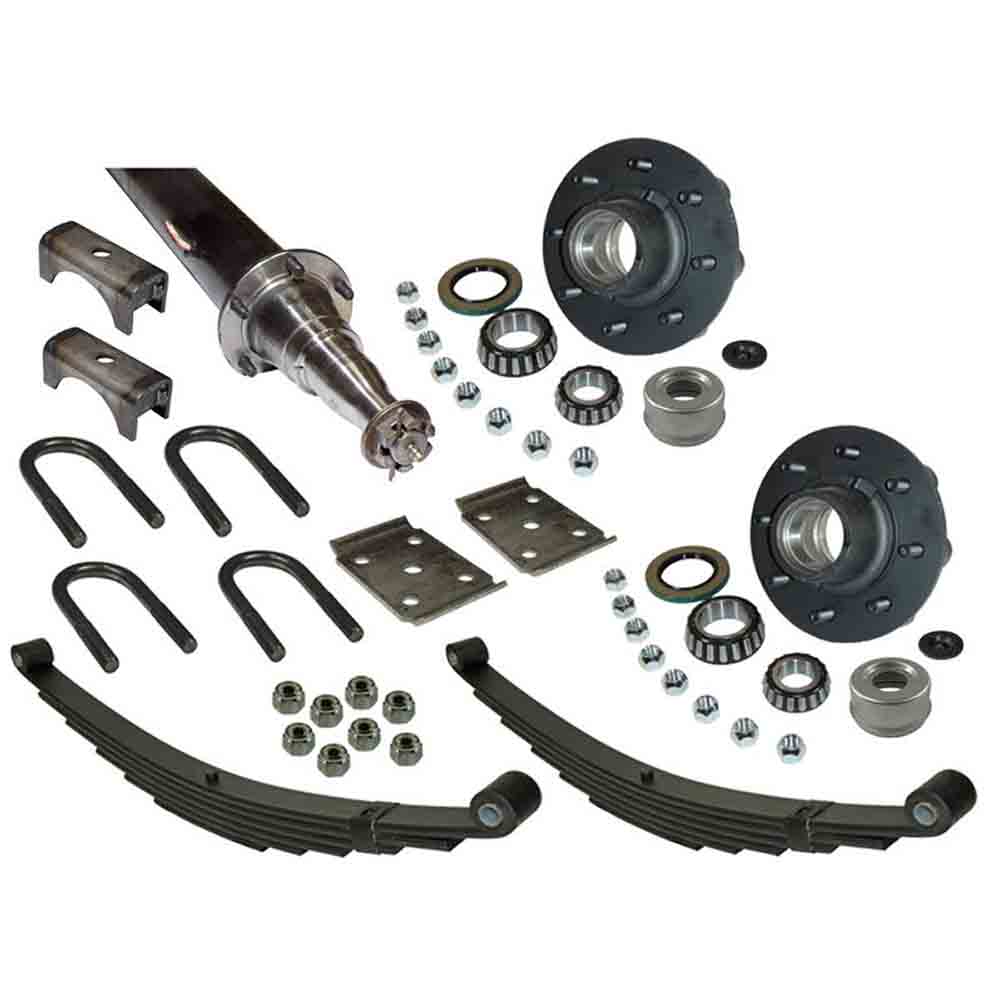

6,000 lb. straight trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, flanges for mounting drum or disc brakes (not included), cast iron 8 stud on 6-1/2 inch bolt circle hubs with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 3" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Includes (2) 8 on 6-1/2 inch studded hubs with bearings, seals and grease caps
  • Spring seats are shipped loose and must be welded to the axle to complete the installation
  • Includes double eye springs with U-bolts, tie plates and lock nuts
  • 1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins
  • Axle includes flanges for mounting drum brakes (sold separately)

Specifications

Specifications
Brand Lippert
Capacity 6,000 lbs.
Mount Width 56 to 62 inch
Overall Width 80 inch
Spring Dimensions 27 inch (eye to eye) x 1 3/4 inch
Spring Seats Loose
Width At Hub Face 74 inch
