3,500 lb. Straight Axle Tube with 94 Inch Hub Face
List Price: $211.95
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
3,500 lb. Straight Axle Tube - 94 Inch Hub Face

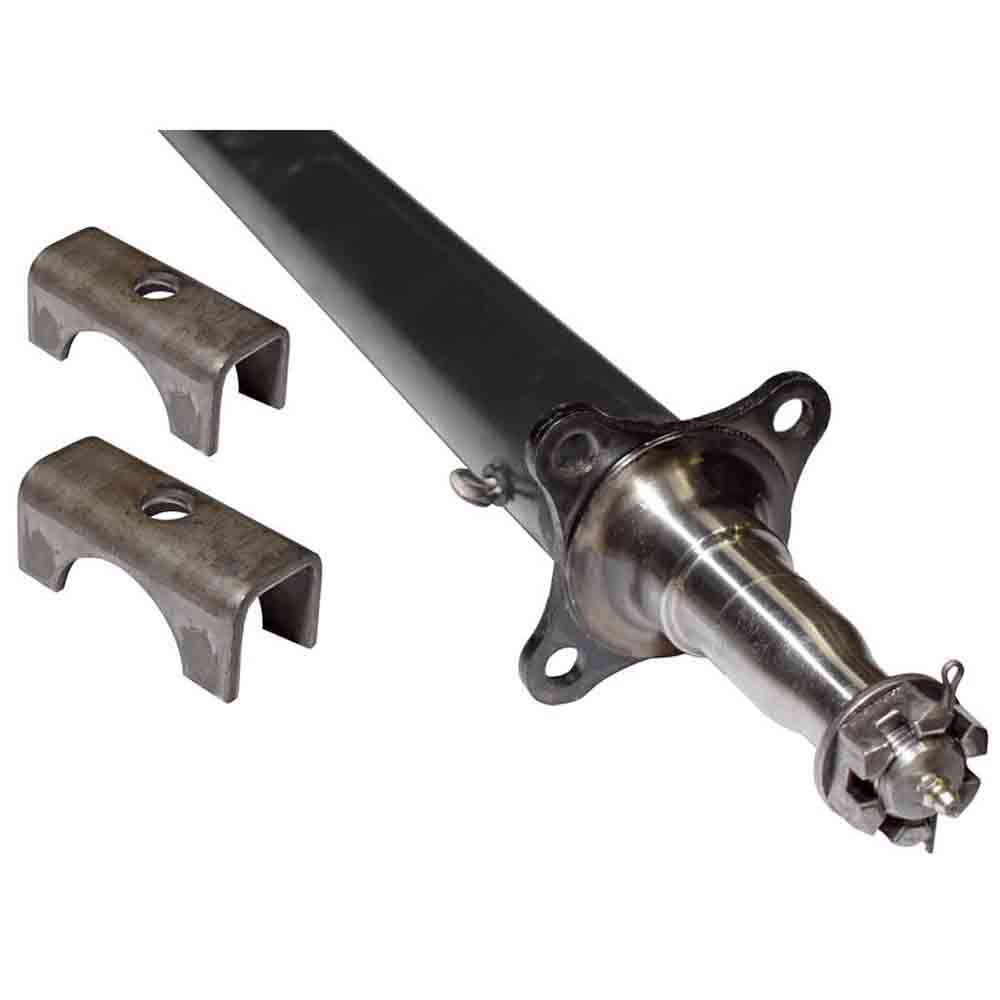

3,500 lb., straight trailer axle tube with spindles, castle nuts and cotter pins. Axle is equipped with 4-bolt brake flanges for mounting electric or hydraulic brakes, sold separately. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.
Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.
- This axle requires the use of rims with zero offset (not included).
- Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
- Spring seats are shipped loose and must be welded to the axle to complete the installation
- 1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
- Used on boat trailers, tent campers, utility and snowmobile trailers
|Brake Mounting Flange||4-Bolt|
|Mount Width||76 to 82 inch|
|Overall Width||98-1/2 inch|
|Width At Hub Face||94 inch|
