3,500 lb. Straight Axle Tube with 62 Inch Hub Face


List Price: $275.95
- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

3,500 lb. Straight Axle Tube - 62 Inch Hub Face

Product Details

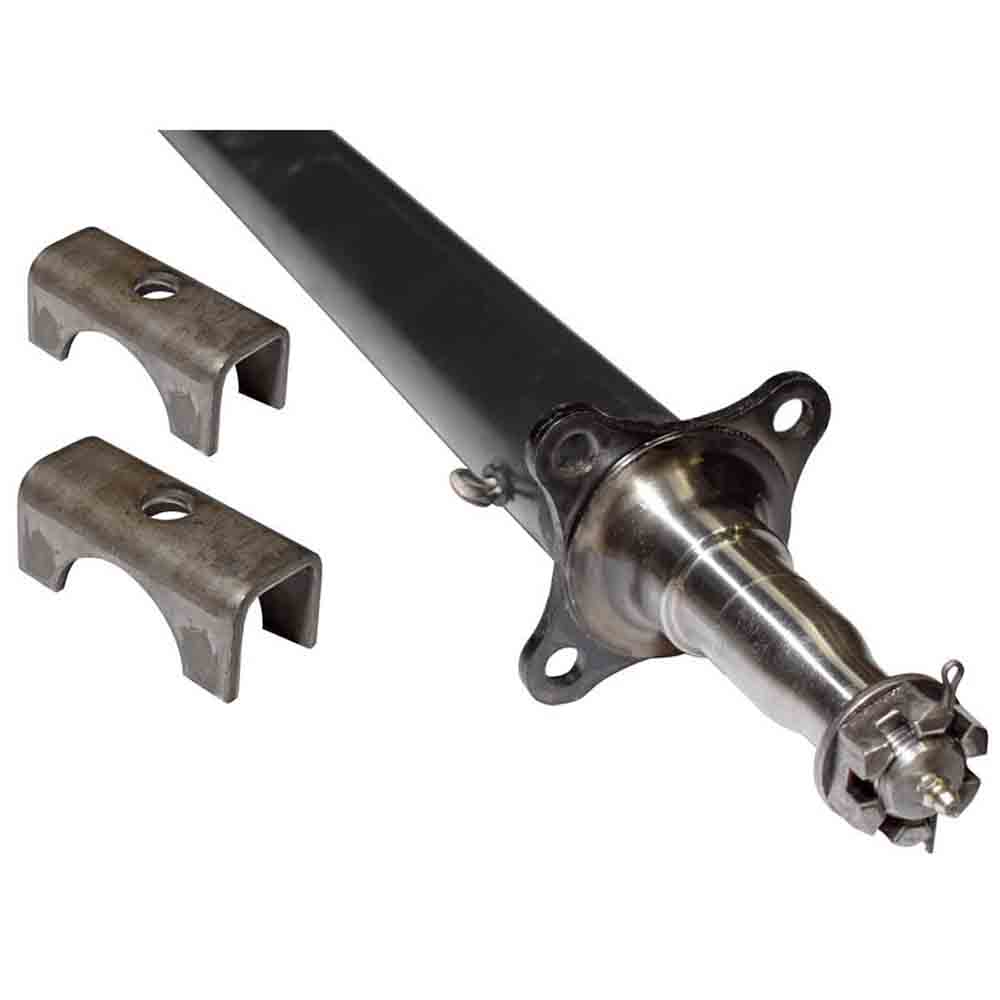

3,500 lb., straight trailer axle tube with spindles, castle nuts and cotter pins. Axle is equipped with 4-bolt brake flanges for mounting electric or hydraulic brakes, sold separately. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

  • Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
  • Spring seats are shipped loose and must be welded to the axle to complete the installation
  • 1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
  • Used on boat trailers, tent campers, utility and snowmobile trailers


Brand Lippert
Brake Mounting Flange 4-Bolt
Capacity 3,500 lbs.
Mount Width 46 to 50 inch
Overall Width 66-1/2 inch
Spring Seats Loose
Width At Hub Face 62 inch
